It’s Mech Room Monday, and we have quite the system to show off!

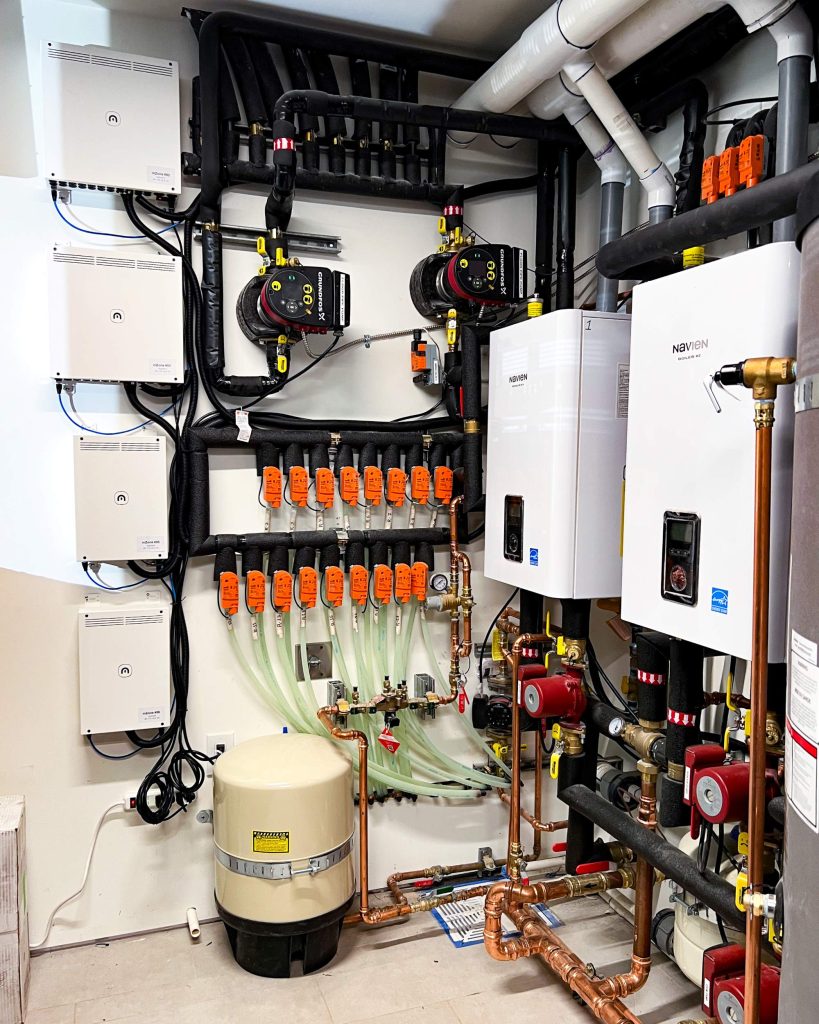

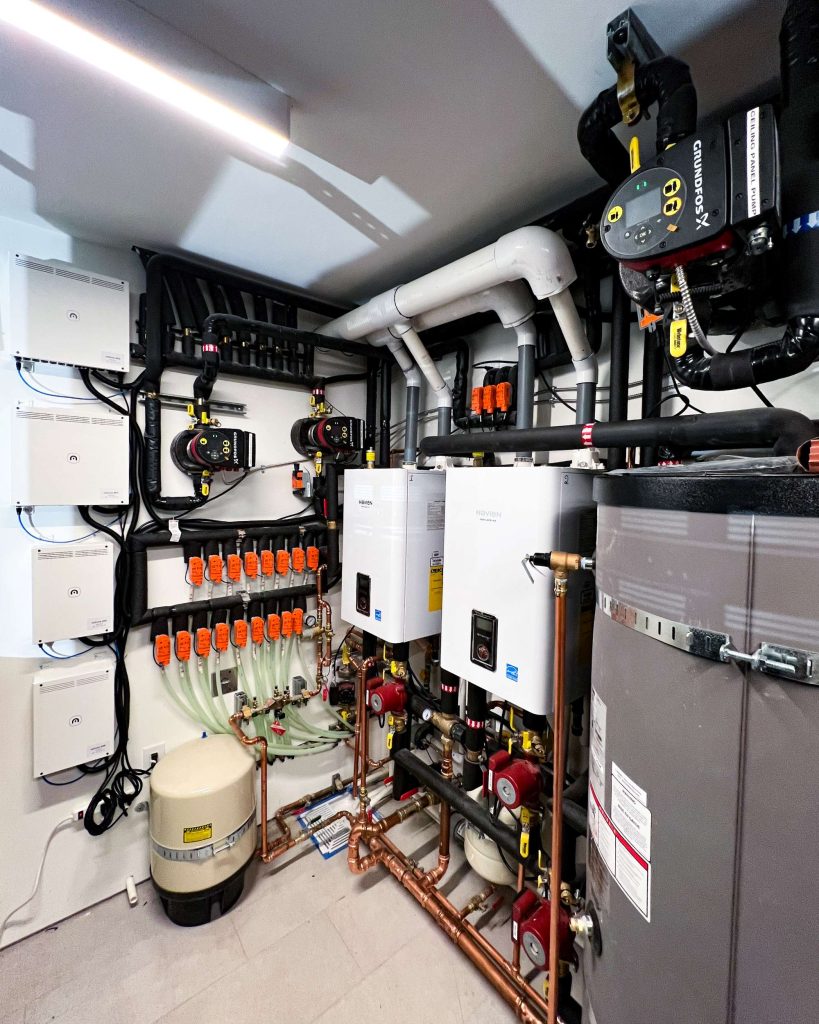

Installed by the team at Warm Corp West, this mechanical room serves a 15,720 sqft residence in the Bay Area. The home’s 4-pipe hydronic system utilizes a single air-to-water heat pump to generate chilled water for hydronic cooling, while two boilers produce hot water for hydronic heating.
Using Messana WHITE SERIES Controls (mBox alongside mZone zoning modules), hydronic heating and cooling is provided via a Ray Magic® radiant ceiling (H/C), radiant floor (H/C), and hydronic fan coil units (H/C) to serve 20 zones!
Key components of this hydronic system include:
- Grundfos pumps

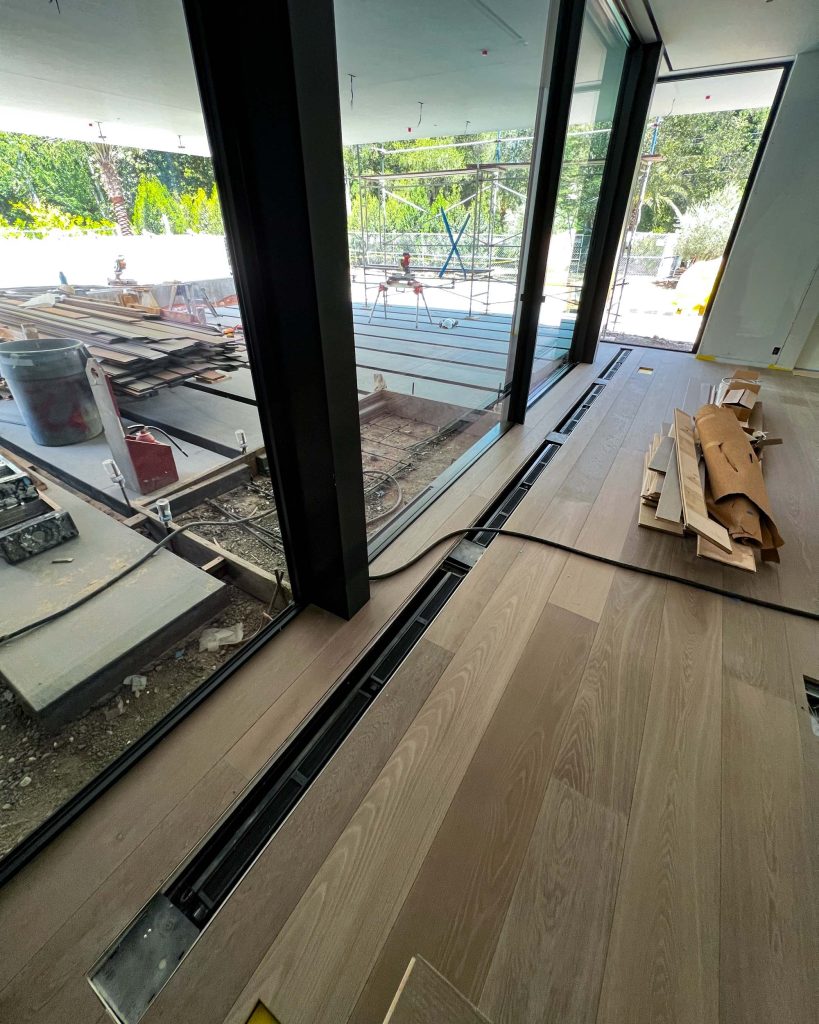

- Jaga Clima Canal and Briza 22 FCUs
- Navien boilers

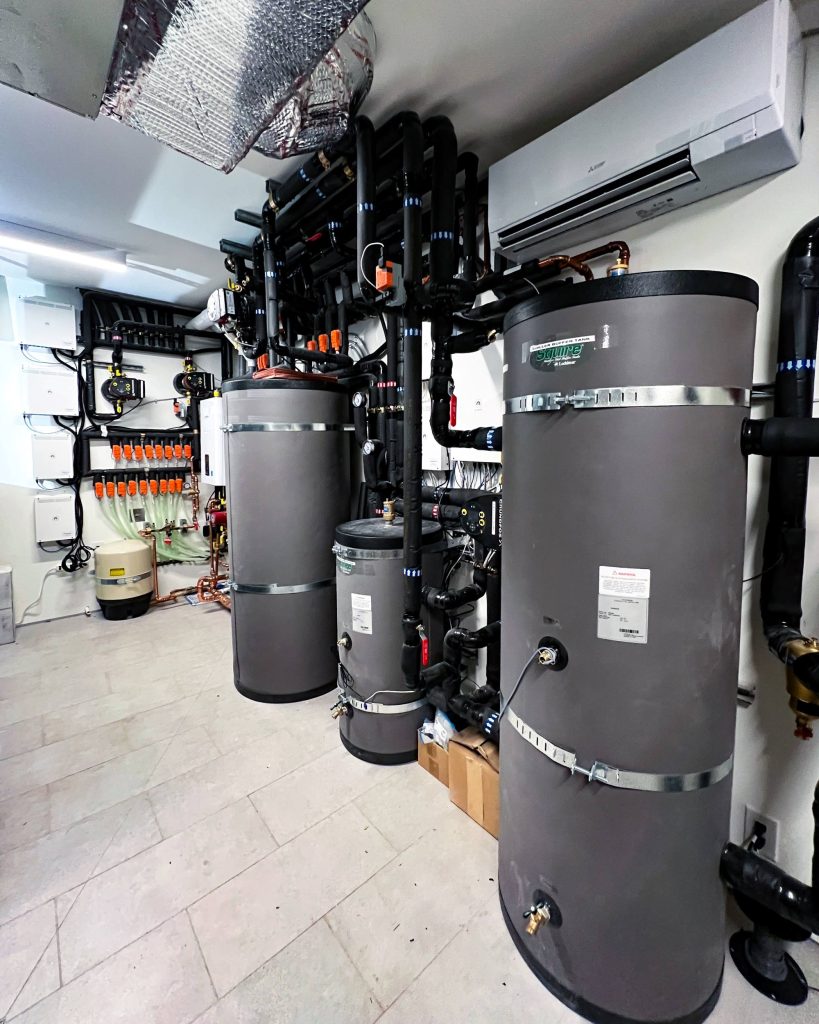

- Lochinvar buffer tanks
- Hi-Velocity FCU
Installer: Warm Corp West
