Innovative HVAC controls designed to tackle the challenges of complex hydronic systems.
Smart Control Solutions Optimizing Radiant Heating and Cooling for Unmatched Home Comfort
Although Messana Controls were developed with a focus on radiant ceiling/floor heating and cooling, Messana Controls can also manage: Hydronic Fan Coils, Snow Melt Systems, Towel Warmers, Electric Radiant Floors, VRF/VRV, ERV/HRV.
Messana Controls consists of Black and White SERIES controllers. The Black Series provides a simple one-box-solution for up to 5 or 10 zones. While the White SERIES provides a modular solution for larger HVAC systems.
Innovative HVAC controls designed to tackle the challenges of complex hydronic systems.
Smart Control Solutions Optimizing Radiant Heating and Cooling for Unmatched Home Comfort
Although Messana Controls were developed with a focus on radiant ceiling/floor heating and cooling, Messana Controls can also manage: Hydronic Fan Coils, Snow Melt Systems, Towel Warmers, Electric Radiant Floors, VRF/VRV, ERV/HRV.
Messana Controls consists of Black and White SERIES controllers. The Black Series provides a simple one-box-solution for up to 5 or 10 zones. While the White SERIES provides a modular solution for larger HVAC systems.
Innovative HVAC controls designed to tackle the challenges of complex hydronic systems.
Smart Control Solutions Optimizing Radiant Heating and Cooling for Unmatched Home Comfort
Although Messana Controls were developed with a focus on radiant ceiling/floor heating and cooling, Messana Controls can also manage: Hydronic Fan Coils, Snow Melt Systems, Towel Warmers, Electric Radiant Floors, VRF/VRV, ERV/HRV.
Messana Controls consists of Black and White SERIES controllers. The Black Series provides a simple one-box-solution for up to 5 or 10 zones. While the White SERIES provides a modular solution for larger HVAC systems.
The Evolution of Messana's Radiant Control Solutions
Shaping the Future of Radiant Cooling and Heating Technology:
Three Decades of Innovation and Design.
Over the course of nearly three decades, Messana Hydronic Technologies has tirelessly pioneered the development of HVAC controls, with an emphasis on radiant cooling and heating systems. Through continual innovation, we’ve developed a robust control platform that can manage the most complex residential or commercial HVAC systems.
Messana Controls can monitor and manage heating/cooling/air treatment via radiant surfaces, hydronic fan coils, ERV/HRV units, and VRF/VRV systems.
2003

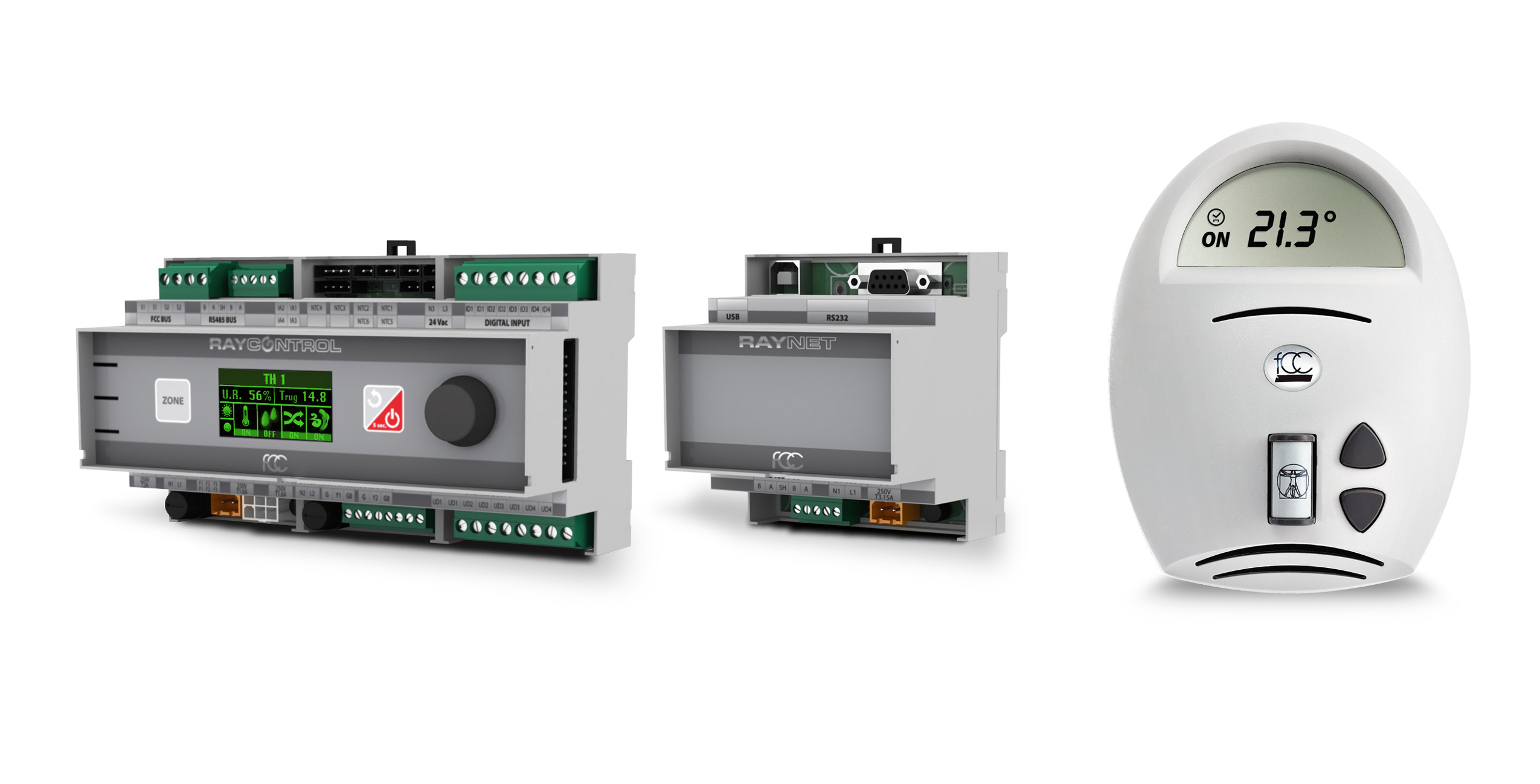

Ray Control
The regulation and control systems developed by Permasteelisa Impianti – FCC Planterm Division. Designed for the correct application of radiant air conditioning.
2014
Control Magic
Control Magic is the core of the hardware platform of any Messana radiant cooling and heating system. It constantly monitors every room of the building through accurate proprietary sensors (SenseMagic) and, based on the real thermal loads, dynamically modulates the supply water temperature (typically through a 2-10V electronic mixing valve).
2021

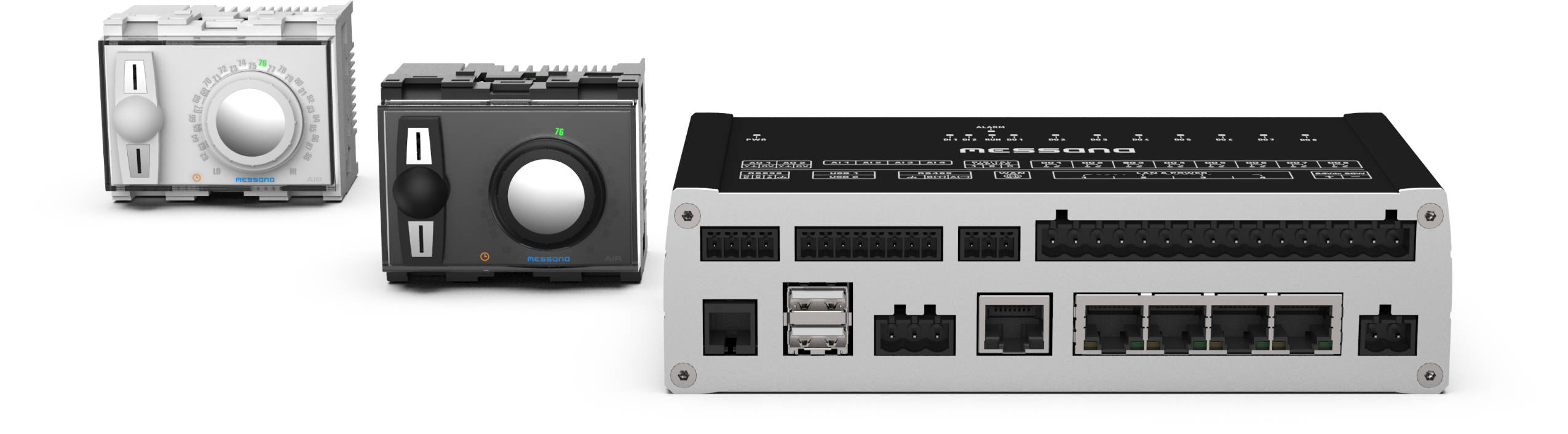

mControl
mControls is the latest in-home climate control technology. Designed by Messana with over twenty years of experience in designing HVAC controls, specifically for hydronic systems. Messana Controls provides a flexible control solution for hydronic radiant systems… and more!
Integrating with your heat pump to maximize efficiency and comfort
Where comfort meets sustainability.
The Messana App seamlessly integrates with your smart home or home automation platform, allowing you to effortlessly control your HVAC system alongside your other smart home devices.
- Energy monitoring (real time, daily, weekly, monthly)
- Coefficient of Performance (COP) monitoring
- Monitors and Adjusts supply and return water temperatures
- Full access to all Heat Pump parameters
- Simple modBus connection (2 wires) with mBox (With some HP)
- Remote troubleshooting
- Alarms email
- Connectivity with Solar PV
- Local and Federal Tax credit for mControls connect to Heat Pump
- Works with Air to Water and Water to Water HP
- Controlling Space Heating/cooling and Domestic Hot Water

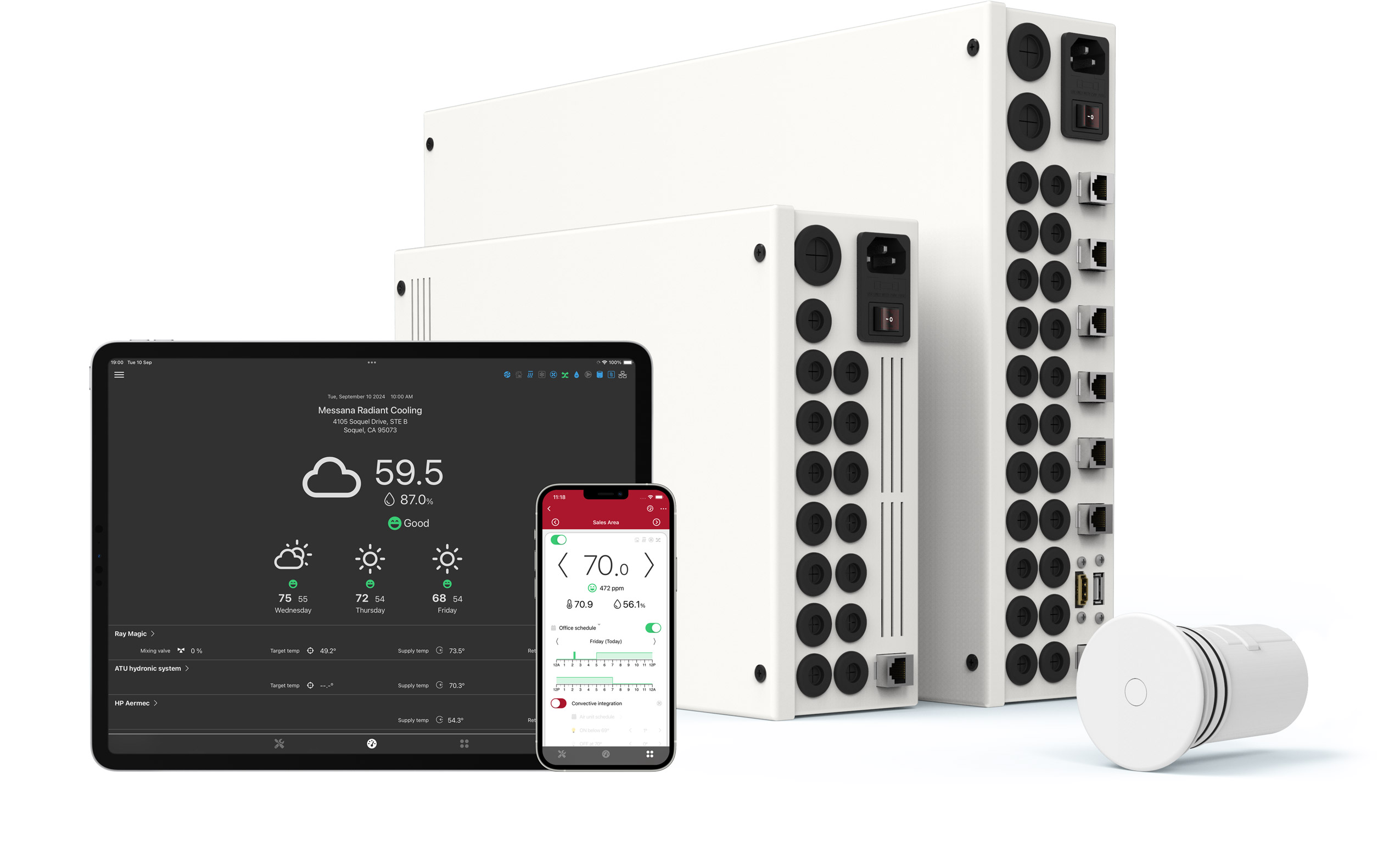

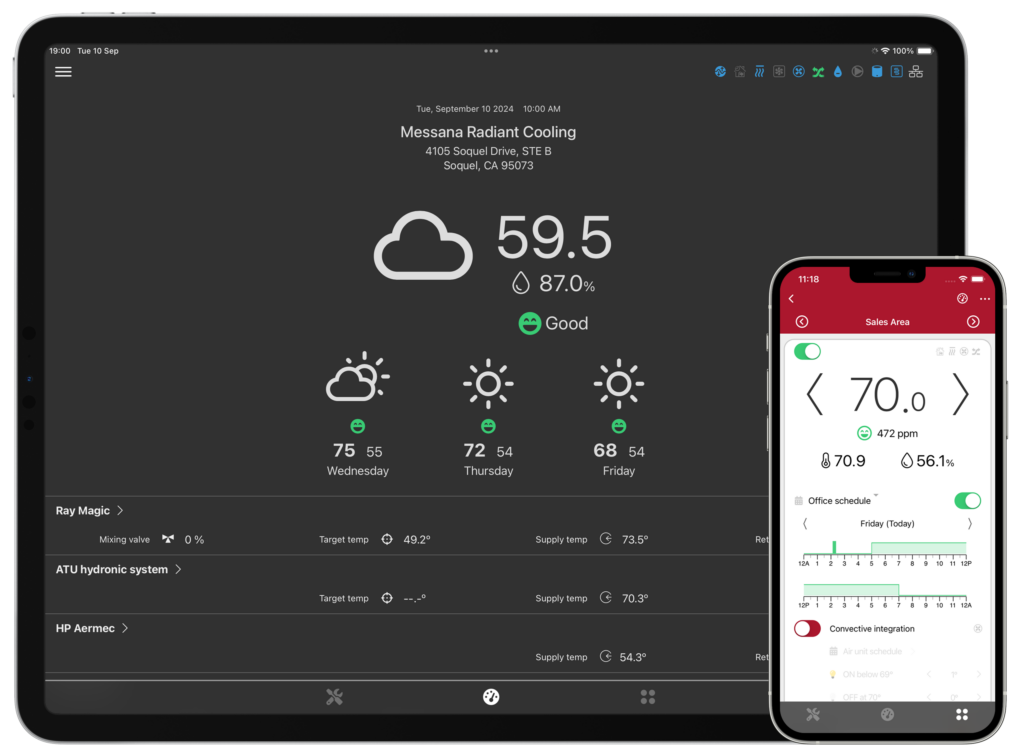

The Messana App, complete HVAC control, at your fingertips
Monitor and manage your home’s HVAC system from anywhere in the world with the Messana web and mobile apps.
Advanced HVAC Control Technology to Optimize System Performance through a Single Automated Cloud Solution
Radiant Ceiling
Based on a proprietary technology that optimizes the radiant system performance in terms of energy efficiency and comfort, while and always maintaining an accurate and uniform indoor temperature. It also controls 4-pipe system for simultaneous radiant cooling and heating.
Radiant Floor
Controls radiant fluid to maintain a comfortable floor and room temperature.
Fan Coils
Gentle control of air handlers as convective integration of the radiant system. Support for major HVAC air handlers (Daikin, Hitachi, LG, Mitsubishi).
Heat Pump
Single-stage or two-stage controls of heat pumps. Maintains optimum buffer tank temperature (primary loop) and controls supply temperature (secondary loop) by modulating 3-way mixing valve as function of supply and return temperatures.
Domestic Hot Water
Optimizes multi-stage heating supplies (boiler, solar, heat pump) as well as recirculating pumps through programmed scheduling, temperature and/or room-based presence sensors to provide instantaneous hot water supply only when needed.
Air Treatment
Controls humidifiers, dehumidifiers and air treatment units (ATUs) to maintain optimal ThermalWellbeing™.
Boiler
Single-stage or two-stage controls of boilers. Maintains optimum buffer tank temperature (primary loop) and controls supply temperature (secondary loop) by modulating 3-way mixing valve as function of supply and return temperatures.
Your Smart Home HVAC Solution
The Messana App seamlessly integrates with your smart home or home automation platform, allowing you to effortlessly control your HVAC system alongside your other smart home devices.
BLACK series
mBox 5 and 10, one-box solutions for small to medium-sized hydronic HVAC systems.
Zones: Up to 5 zones (mBox5) or 10 zones (mBox10). Each zone requires an mSense comfort sensor. Each zone can feature radiant and/or fan coils and one contact window.
Heating and cooling terminals: Radiant ceilings, radiant floors, hydronic fan coils (analog or digital control). Each terminal can be set for both heating and/or cooling.
Air systems: ATUs for HRV (Heat Recovery Ventilation), free cooling, and dehumidification. Controlled via Modbus.
Hydronic systems: Up to three (mBox10) or two (mBox5) independent hydronic systems. Two (mBox10) or one (mBox5) are dedicated to the main heating/ cooling terminals with a buffer tank and 3-way valve for temperature control. One additional hydronic system is dedicated to ATUs and/or fan coils as second stage.
DHW: With dedicated tank and recirculation pump (only mBox10).
H/C sources: HP and boiler.
The simple solution for complex systems, built with
Industrial Grade Components.
- A/C Power Supply 12VDC 30W (dedicated to mini PC)
- A/C Power Supply 24VDC 100W (72W available for external devices)
- Messana mControl I/O device (Emerson iProGENIUS code: IPG208D)
- Fanless industrial mini PC x86 Linux
- I/O contacts (DIN rail-mount terminal blocks with Push-in CAGE CLAMP®)
- 4 power relays (DIN rail-mount sockets) with GND terminals
- Front connection ports and cable pass through rubber grommets
WHITE series
Modular control solutions for the most complex hydronic HVAC systems.
Smart sensors for better health, comfort, and efficiency.
Going beyond air temperature.
In the past, typical room thermostats only provided air temperature as the sole index of thermal conditions in your home. An HVAC control system based uniquely on air temperature does not account for other key comfort elements, such as mean radiant temperature, air temperature and velocity, humidity and air quality.
This is why at Messana, we have invented mSense, a new generation of room sensors to enhance comfort and energy efficiency.
mSense measures the three fundamental indoor environmental parameters that influence the wellbeing and thermal conditions of occupants: operative temperature, relative humidity (dew-point), and air quality.
Operative Temperature
mSense measures the operative temperature by combining the influence of air and mean radiant temperature in a similar way as the skin’s thermal receptors of human body do. Integrating in a control system a sensor that is also influenced by the thermal radiation provides more accurate results than air temperature alone.
Relative Humidity (dew-point)
Measuring and controlling humidity levels in buildings is very important for both comfort and health. It is also crucial in properly controlling radiant cooling systems. mSense is equipped with a stable and accurate sensor to measure humidity and dry bulb temperature. Based on these measurements it precisely evaluated the dew-point temperature.
Air Quality
As an offered option, mSense can be equipped with a sophisticated gas sensor that goes beyond the carbon dioxide (CO2 ) by analyzing substances that directly affect your health and help improve the indoor air quality and save energy. The Indoor Air Quality IAQ sensor monitors the equivalent CO2 and the Total Volatile Organic Compounds (TVOCs).
Control without compromise
Messana Controls, the universal hydronic control system.
